blafili B3 is designed to be the best friend of audio contractors. Its specialty is solving audio challenges easily and inexpensively by getting signal to someplace that would be otherwise difficult or inconvenient. Simple to install, configure and operate, blafili B3 belongs in the toolbox of every audio installer.
With countless Bluetooth-enabled audio sources roaming the planet, the blafili B3 interfaces them all with a professional audio system for sound reinforcement, special event or retail applications. It receives Bluetooth signals wirelessly, then routes the audio to balanced XLR output for integration with mixers and amplification systems. Its Bluetooth Pairing mode ensures a secure connection.
- Adds Bluetooth to any audio system

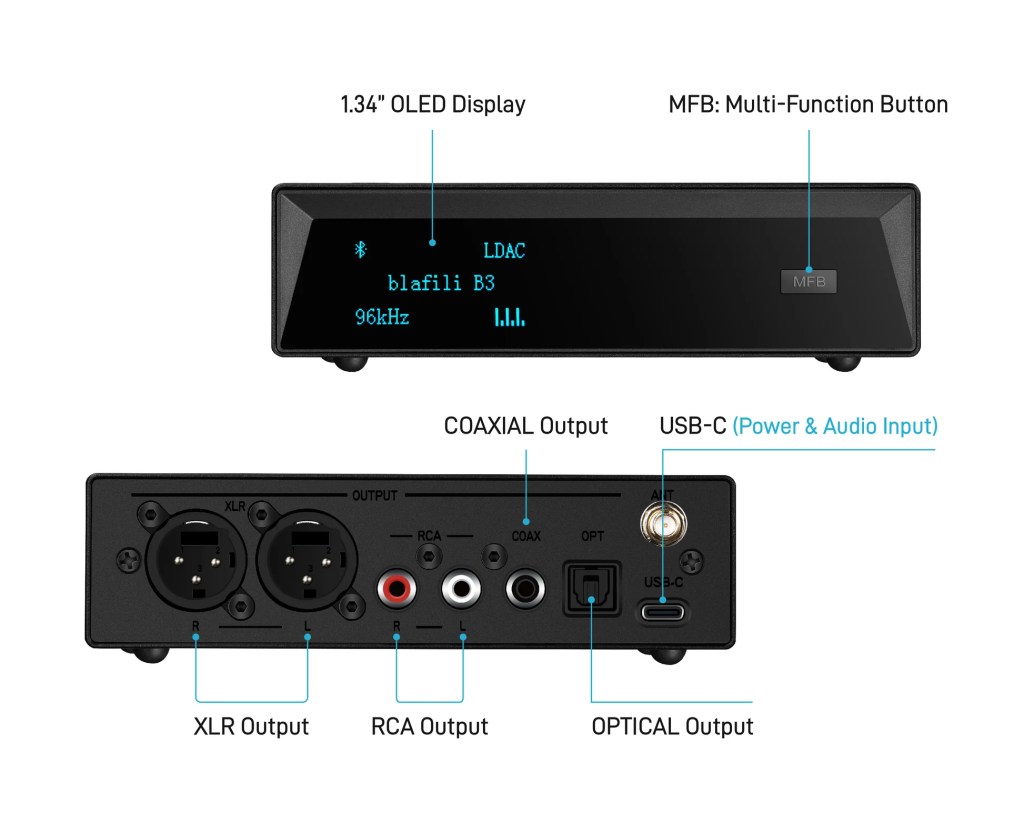

- Balanced XLR and unbalanced RCA audio outputs: balanced XLR audio output included for integration with mixers and amplification systems.
- Digital optical and coaxial audio outputs.
- It’s convenient that all outputs are active at the same time.

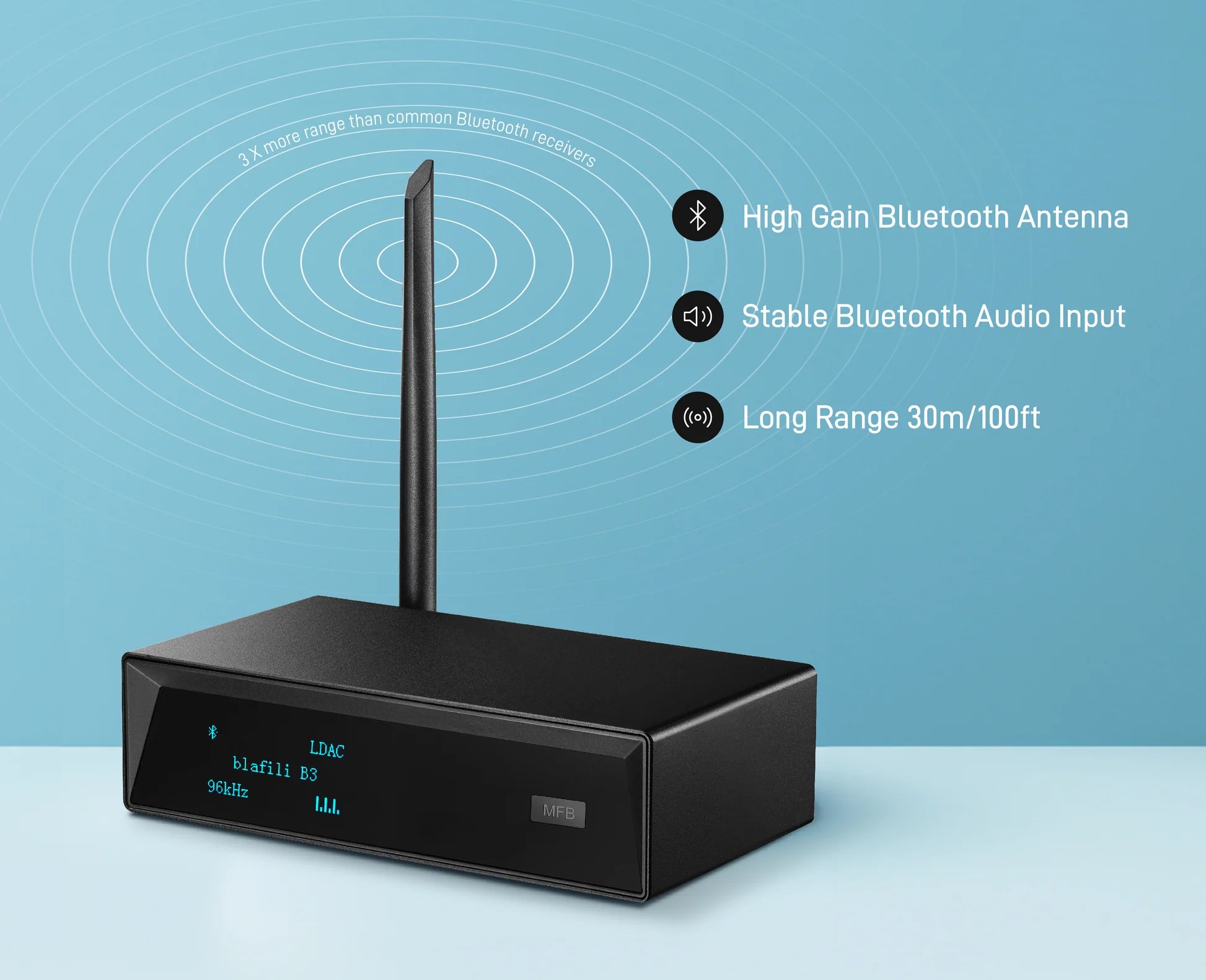

- Up to 30m (100 ft) range, removable Bluetooth antenna ( RP-SMA female connector )
Audio Specification
- Frequency Response: 20 Hz – 20 KHz (+1 dBu)
- Signal-to-Noise Ratio: > 112 dB
- THD: < 0.02%
- Output Impedance: 57 Ohms
- Output Voltage: 2.1V RMS
Bluetooth Specifications
- Version: 5.1 + Enhanced Data Rate (EDR)
- Maximum Receiver Power: Class 1, 4 dBm
- Receiver Frequency: 2.4 GHz – 2.480 GHz
- Receiver Range: Up to 100 ft. / 33 m
- Receiver Sensitivity: -80 dBm @ 0.1% BER
- Supported Codec: LDAC, aptX HD, aptX LL, aptX, SBC, MP3, AAC
Analog Output
- Balanced (XLR Male): +4 dBu (+1 dB)
- Unbalanced (RCA female): -2 dBu (+1 dB)
Digital Output
-
- Optical and Coaxial
- Optical and Coaxial
General
- Power Adapter: 5V USB Charger (NOT INCLUDED)
- Input Voltage: 5 V DC
- Dimensions (width x depth x height): 5.6″ x 3.0″ x 1.5″
- Weight: 0.53 lb (240g)
Enjoy High-Quality Bluetooth Audio on Your Smartphone – blafili B3 Bluetooth Receiver & USB Decoder lets you stream music from your smartphone to your speakers with stunning sound quality. It supports LDAC, aptX HD, aptX LL, aptX, SBC and AAC Bluetooth audio codecs for the best wireless audio experience.

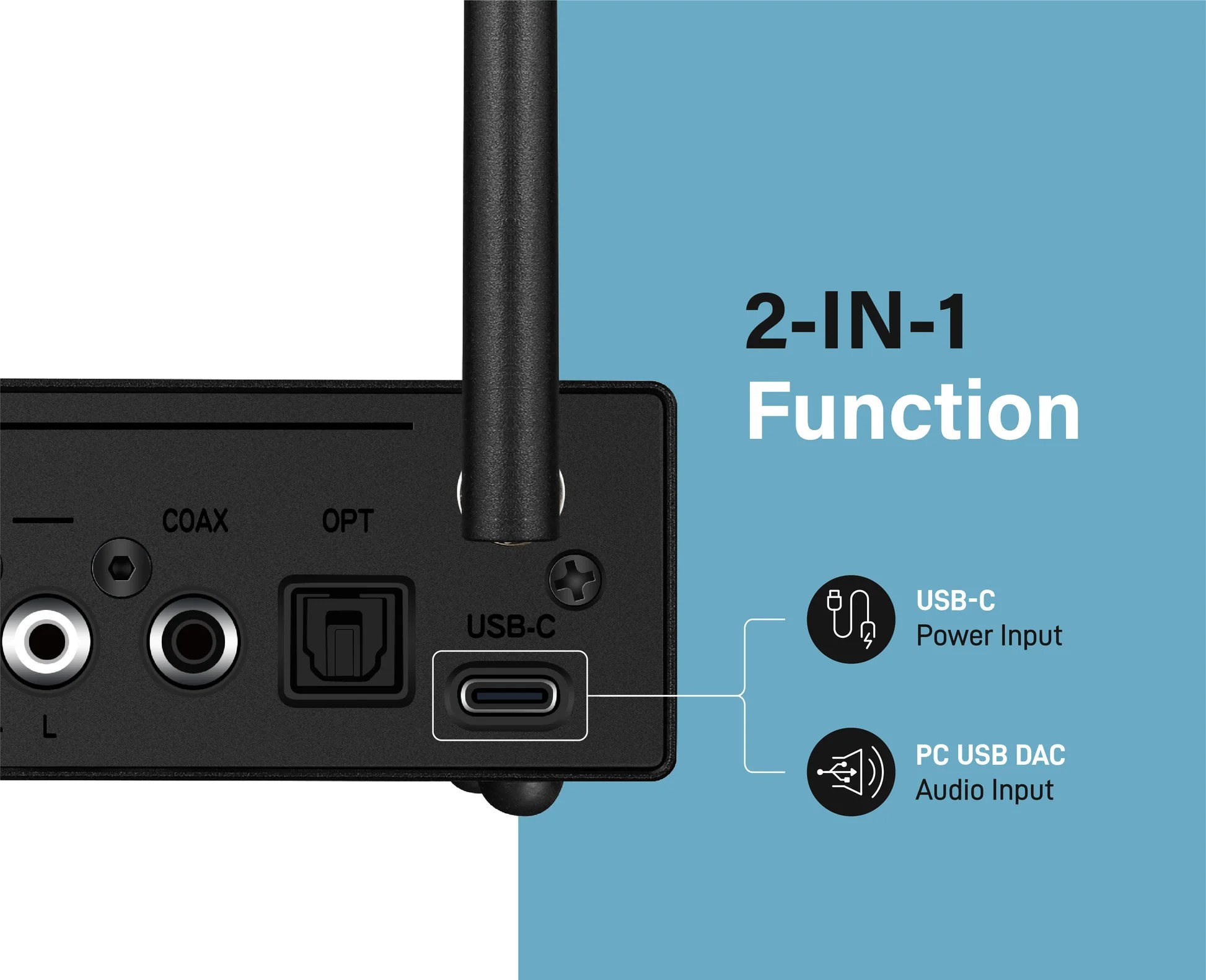

USB DAC for Your Computer – blafili B3 also works as a plug-and-play USB Decoder that supports up to 16bit/48kHz audio resolution. You can connect it to your laptop, PC or tablet with a USB cable and enjoy high-quality sound from your computer. blafili B3 also has a Bluetooth feature that automatically switches when you play Bluetooth while using USB Sound Card.

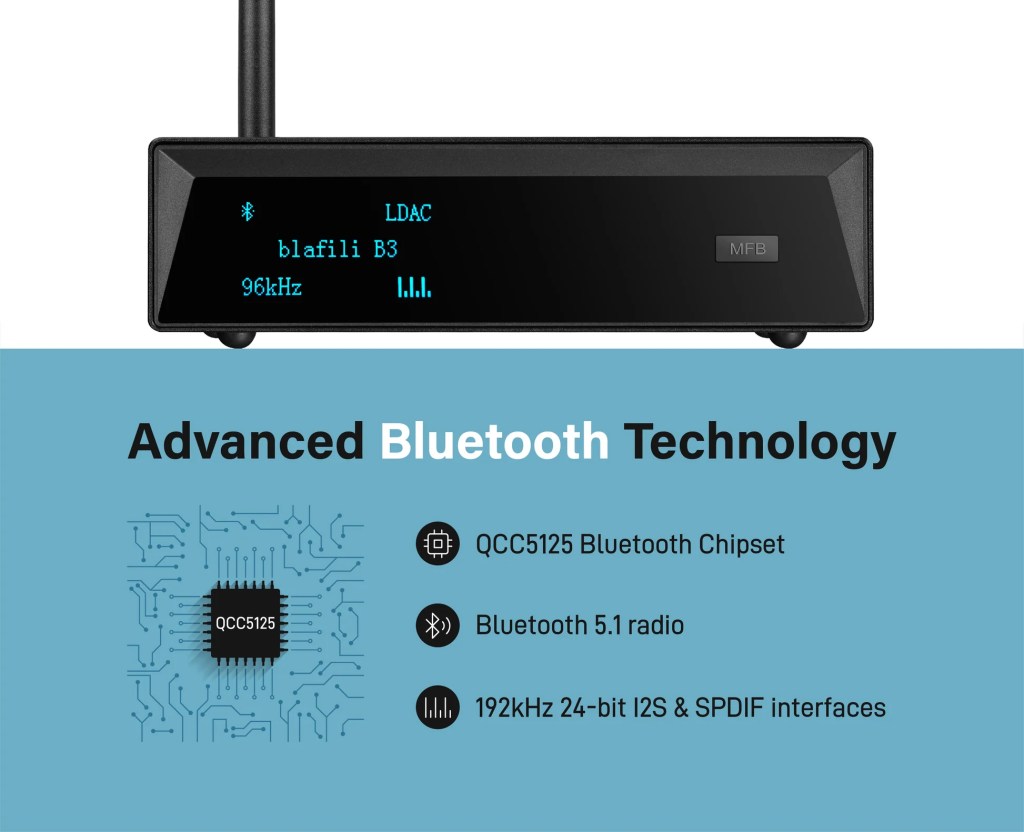

Qualcomm QCC5125 Chipset and ESS DAC ES9018K2M – blafili B3 combines Qualcomm’s latest chipset QCC5125 with
ESS’s DAC ES9018K2M for the ultimate performance. QCC5125 provides low power consumption, low latency and high stability, while ES9018K2M delivers low distortion, low noise and high dynamic range.
Versatile Connection Options – blafili B3 can be connected to a variety of audio systems, including hi-fi receivers, amplifiers, DACs. You can use the RCA cable or Optical cable or Coaxial cable or XLR cable( EXCLUDED ) to connect it with any RCA, Optical, Coaxial, XLR spacing device.
Customize your Bluetooth broadcast name ( <= 12 characters : Letters or Numbers ONLY )
Unlike most other Bluetooth receivers, we offer the possibility to customize your Bluetooth broadcast name to anything you want. Please just make sure that when you place your order you clearly state your preferred Bluetooth broadcast name in the order notes. We also offer software( Windows ONLY at the moment ) for device naming if that is convenient for you.
Customize your passcode( 4 digits : Numbers ONLY )
No passcode for blafili B3 device by default. However we can set different passcode for every blafili B3 device in order to avoid strange connections. Please just make sure that when you place your order you clearly state your preferred passcode in the order notes. We also offer the software( Windows ONLY at the moment ) for setting a password if that is convenient for you.
Q: How to leave a note on an order for a different passcode & Bluetooth broadcast name I don’t see a note / comment box ?
A: Below are the steps for how to add a note for custom BT broadcast name and passcode:
Step 1: Click “Add to cart”
Step 2: Click “View cart”
Step 3: Click “Proceed to checkout”
Then you will come to a form of “Order notes (optional)”
Q: Can I use multiple outputs at the same time on the b3 ?
A: All the outputs: RCA, OPTICAL, COAXIAL & XLR are ALIVE at the same time.
WHAT’S IN THE BOX
- 1 x blafili B3
- 1 x Removable Bluetooth antenna( RP-SMA female connector )
- 1 x USB Type C cable( Power Adapter NOT INCLUDED, any 5V USB charger is fine for blafili B3 )
- 1 x Optical cable ( 3.28 ft )
- 1 x Setup guide
NOTES:
US Orders Shipped from US Warehouse( 3 – 5 days );
Custom Orders Shipped from China( 7 – 14 days ).
